7S-JDKG 35kV SF6 outdoor load break switch is gas-insulated medium voltage switchgear designed for high voltage power distribution system. It adopts high-purity SF6 gas as insulating medium, avoiding electric breakdown and guaranteeing long-term stable operation. Integrated epoxy resin insulated bushings with IP65 outdoor protection rating, rainproof, dustproof, anti-aging, suitable for harsh outdoor working environment.

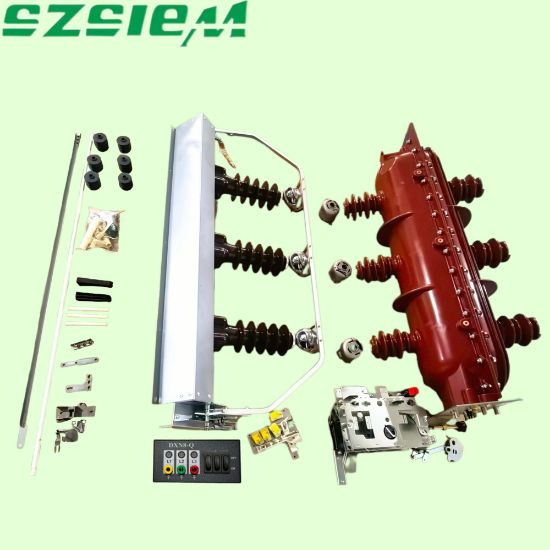

Core structure includes three modules:

1. Main Module: 35kV three-phase epoxy resin encapsulated SF6 insulated bushings, fully sealed gas chamber and high conductivity conductive circuit.
2. Operating Module: Support manual insulated rod operation and optional motorized operating mechanism, realize reliable opening and closing.
3. Auxiliary Components: Standard mounting fasteners, sealing parts and real-time status indicator for easy installation and maintenance.

Key advantages:
• Fully sealed gas chamber, low SF6 leakage, maintenance-free long time operation
• Built-in anti-misoperation interlock device to prevent wrong operation
• Wide working temperature: -40℃ ~ +65℃, resistant to salt fog and weather aging
• Compliant with IEC 62271-200 & GB 3804 standards

Typical application scenarios:

• Outdoor branch switch & user service switch for urban and rural power grid
• 35kV substation feeder circuits
• Industrial park, mining area, large manufacturing high voltage distribution projects

For complete technical datasheet, dimension drawings and project references, please visit xizienergy.com. We provide customization service for power distribution projects.
