Product Description

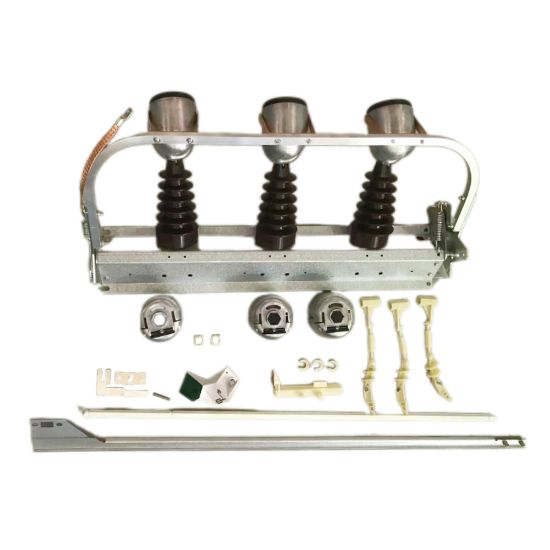

XiziEnergy 7S-JDKG medium voltage earthing switch is designed for direct 12kV & 24kV replacement in ageing Schneider SM6 cubicles. Custom machining ensures matching cabinet dimensions, mounting and linkage interfaces.

We also supply the 7S-JDKG 35kV SF6 load break switch for higher voltage cubicle renovation.
Important: Full technical compatibility review against your exact switchgear model is mandatory before order. Matching voltage alone cannot guarantee proper fit and safe operation. Please provide original part numbers and site photos to speed up technical evaluation.

Key Features
• Dual rating:12kV/24kV, custom configuration for site insulation requirements
• Retrofit spare for SM6 ring main unit maintenance and refurbishment
• Engineers verify footprint, contact geometry, shaft size and mechanical interlock
• Tested short-time withstand, peak withstand and short-circuit making capacity
• Custom mechanical & electrical parameters to match cabinet design
• Supply fabrication drawings, datasheets and test reports for client approval

Technical Specifications
Model:7S-JDKG
Type:Medium voltage earthing switch
Rated voltage:12kV / 24kV
Standard:IEC 62271-102
Application:MV switchgear safety earthing, not for load current interruption
Other electrical parameters to be confirmed per project.

SM6 Retrofit Verification Points
When replacing SM6 earthing switches, confirm:
1. Cubicle model & functional unit
2. Mounting dimensions, phase spacing and installation clearance
3. Operating shaft, handle rotation and mechanical interface
4. Fault level, insulation and electrical ratings
5. Mechanical interlock sequence to maintain cabinet safety functions

Drop-in replacement is not guaranteed without full technical review.
Schneider and SM6 are referenced only for compatibility assessment. This is non-OEM spare part, not original Schneider hardware.

Typical Applications
• Replacement of old or damaged earthing switches
• SM6 ring main unit refurbishment
• Spare stock for substation & industrial power projects

Request Quote
Please share switchgear model, nameplate photos, required fault ratings, mounting drawings and quantity for technical assessment and quotation.
