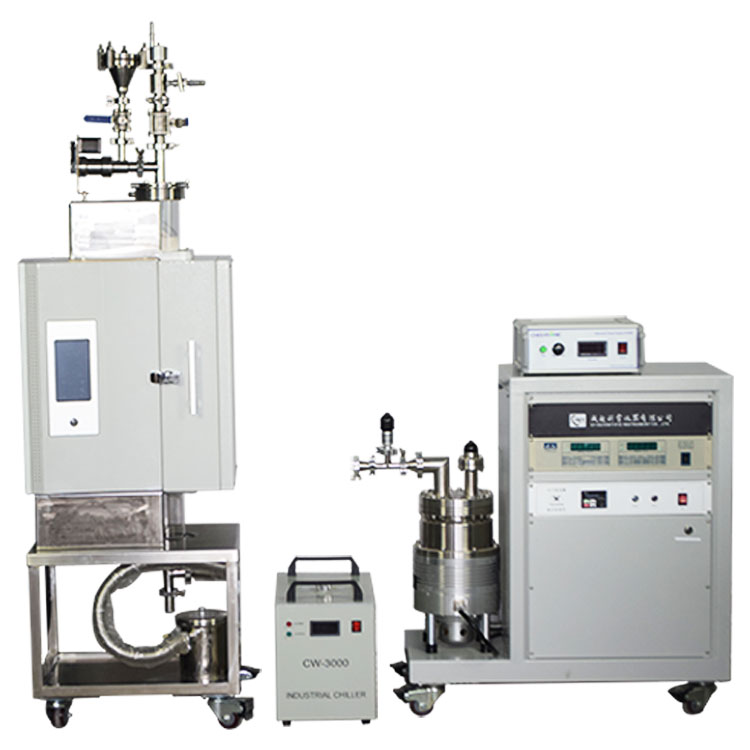

CY-1200X-VT is Two Heating Zone Split Vertical Tube Furnace with vacuum sealed 100mm diameter quartz tube.It can introduce gas flow or liquid/ water atomization to the heating furnace, also be used for PVD, CSS or CVD coating. Two precision temperature controllers provide 30 segments heating and cooling program with +/- 1C accuracy independently. The vertical tube furnace is installed in a heavy-duty mobile cart for easy moving.

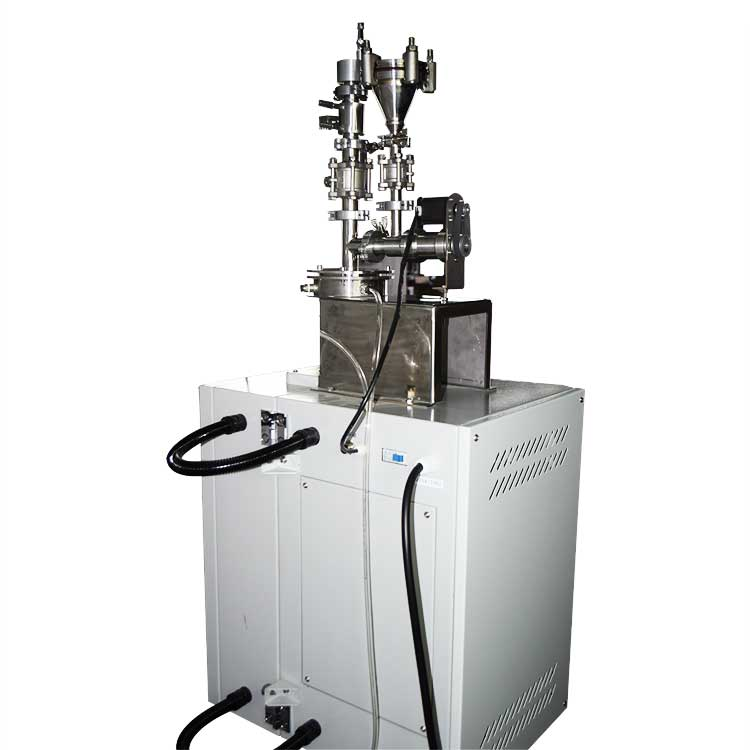

Furnace Structure
Two Heating Zone Split Vertical Tube Furnace for longer and uniform constanttemperature zone
The ultrasonic spray nozzle can make liquid/water atomized via gravity and low-pressure compressed air.
Volumetric Feeder for feeding solid powder into a furnace to form core/ shell structure
Upgrade If you need a horizontal furnace, we will change to the same specification tube furnace at no cost.
You could upgrade from 40KHz to 3 KW and 120 KHz,  Ultrasonic Spray Nozzle at extra cost
Power for Furnace 6KW (total) / each zone: 3KW
Voltage AC 208-240V Single Phase, 50/60 Hz
Max. Temperature 1200°C (<1 hr) each zone
Continuous Temperature 1100°C for each zone
Max. Heating Rate <= 20°C/min.
Temperature Accuracy +/- 1°C

Tube Size and Materials One 1000mm length quartz tube is included
OD: 100 mm, ID. 95 mm
Foam ceramic blocks with alumina coating are included, which is hanged on top of flange to protect O-ring damaged by heat radiation

Heating Zone Length 200mm ( bottom )
200mm ( top )
400mm ( total )
Constant Temperature Zone Constant temperature zone: 300 mm (+/-1°C) if two heating zones are at the same temperature

Temperature Controller MET certified 30 programmable segments for precise control of heating rate, cooling rate and dwell time.
Built in PID Auto-Tune function with overheating & broken thermocouple broken protection.
Over temperature protection and alarm allows for operation without attendant(s).
RS485 Communication Port.
Vacuum Sealing Flange
Two stainless steel flanges with vacuum gauge and valves included
A hook ring is welded inside the top flange for hanging thermal block or crucible by wire
Gas outlet ( vacuum port ) on top with 1/4" barb connector.
Gas inlet on bottom with 1/4" barb connector

Vacuum Level 10E-2 Torr by mechanical vacuum pump
10E-5 Torr by molecular pump
Leak rate < 5 mTorr / min.
Heating Element 1300°C Fe-Cr-Al Alloy doped by Mo
Dimensions 550mm(L) x 380mm(W) x 520mm(H) exclude mobile cart
600mm(L) x 600mm(W) x 1200mm(H) install with mobile cart
Net Weight About 80 kg (excluding mobile cart)
Shipping Size 48"(L) x 40"(W) x 72''(H)
Shipping Weight 400 lbs
Warranty One year limited warranty with lifetime support
