Technical parameter of plasma power supply:

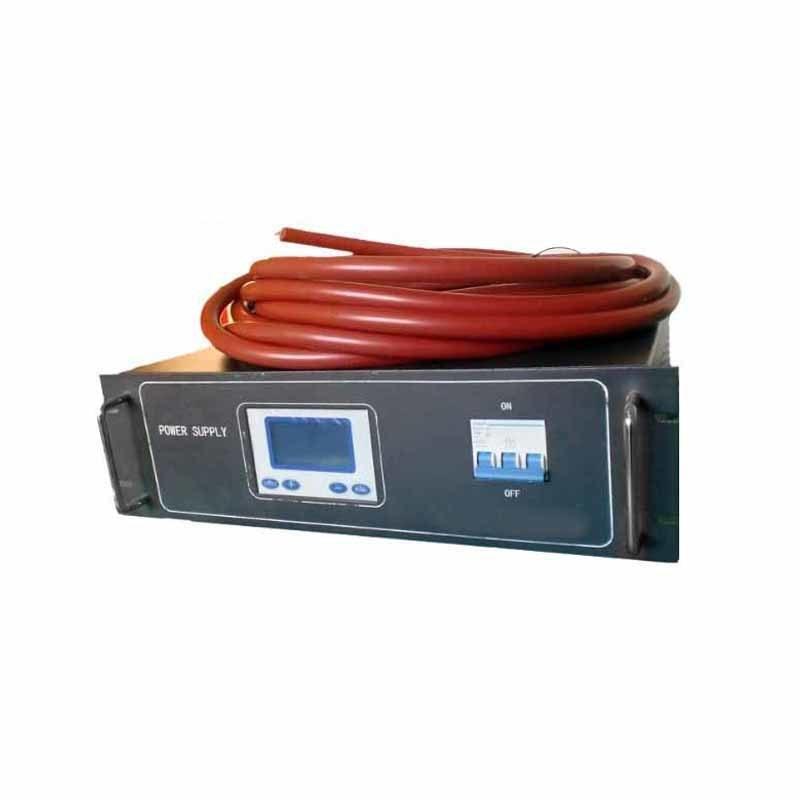

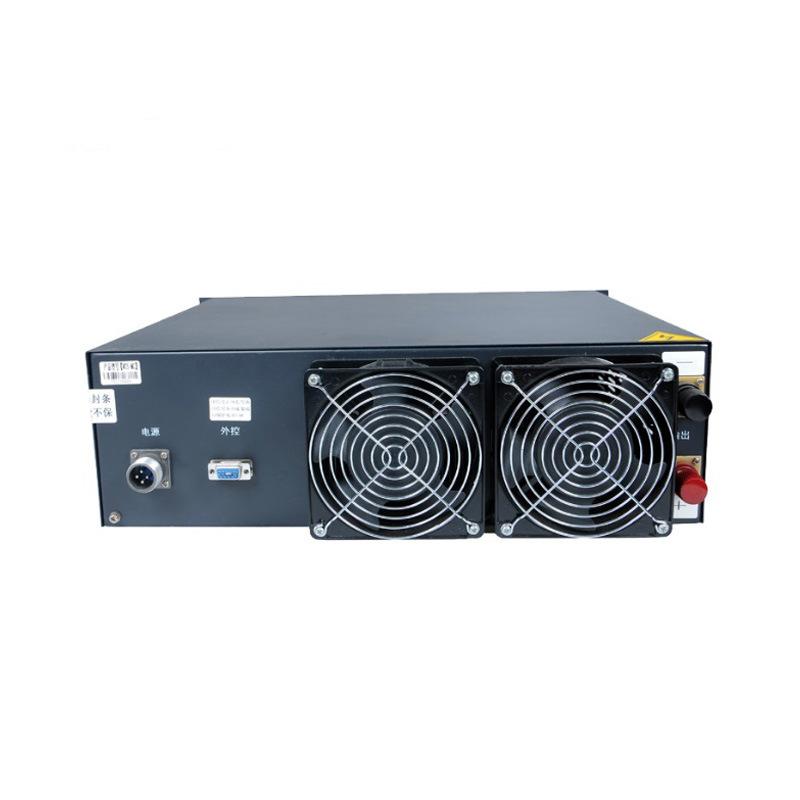

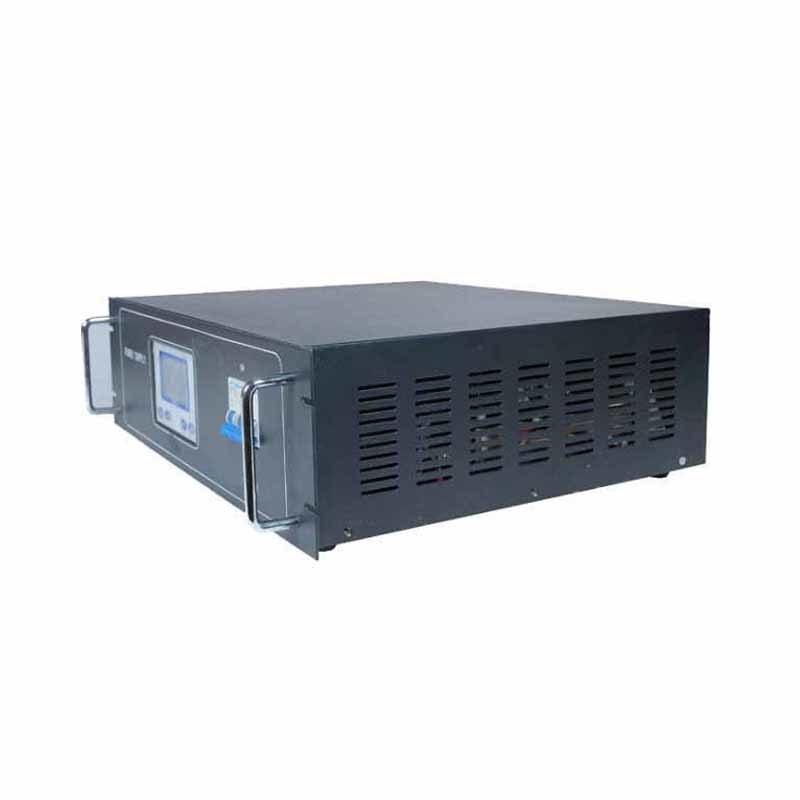

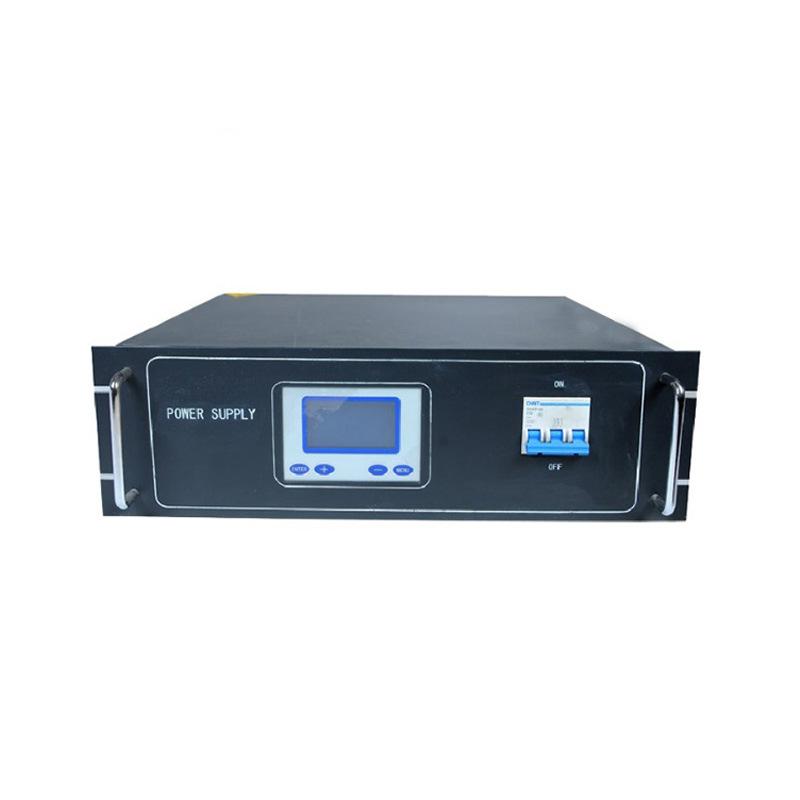

Product Name Medium frequency plasma cleaning power supply
Items No. CY-6KV
Input Voltage AC380±10%V
Output Power 5kw
Current 800mA
Voltage 6KV, maximum 10KV
Frequency 25khz
Waveform Quasi-sine-wave
Mode Custom constant voltage, constant current, constant power
Accuracy of adjustment ≤1%
Efficiency ≥90%
Power Factor cosΦ≥0.9
Power Switching DB9 pin connector
Temperature -10~+40ºC
Humidity ≤85%
Cooling mode Air-cooling
Dimensions 480*135*380(mm)
Fields plasma cleaning, etching, plasma plating, plasma coating, plasma ashing and surface modification.

Application:
Integrated circuit, semiconductor and microelectronics, electronics industry, electronic industry, textile industry, vacuum auto industry, aerospace, bio engineering, medicine, solar panels, plastic, rubber.
