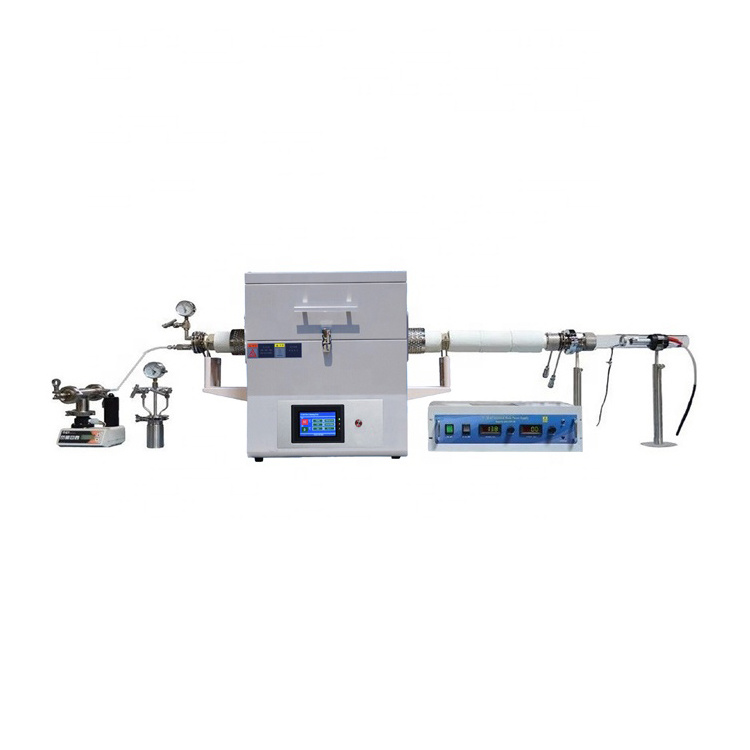

CY-1800X-PGEP is a versatile synthetic system designed for nano-structured oxide materials. Three major modules (Ultrasonic Enhanced Bubbler, Tube Furnace, and Electrostatic Precipitator) are employed on three processing steps including aerosol generation, thermal decomposition, and nano-powder collection. Such a system enables advanced synthetic method that provides control over particle size, morphology, nano/microstructure.

Structure introduce
·Aerosol Generation: 2.4MHz Ultrasonic Enhanced Bubbler can "evaporate" catalyst liquid with literally no heat generated. A stainless steel liquid collector connects inline with the ultrasonic bubble can prevent condensing liquid from streaming into the furnace tube chamber.
·Thermal Decomposition: Tube Furnace can be heated up to 1800C maximum. By passing the droplets flux across the temperature and atmosphere regulated firing zone, chemical, and physical conversion processes proceed.
·Nanopowder Collection: 30KV, 2'' O.D tubular designed electrostatic precipitator can effectively collect nano size particles from the carrier gas flow
