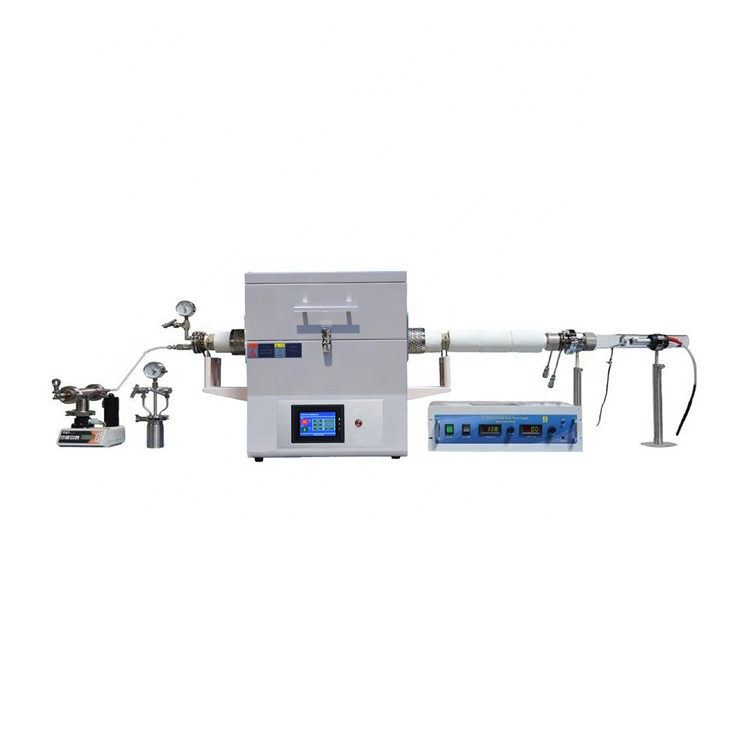

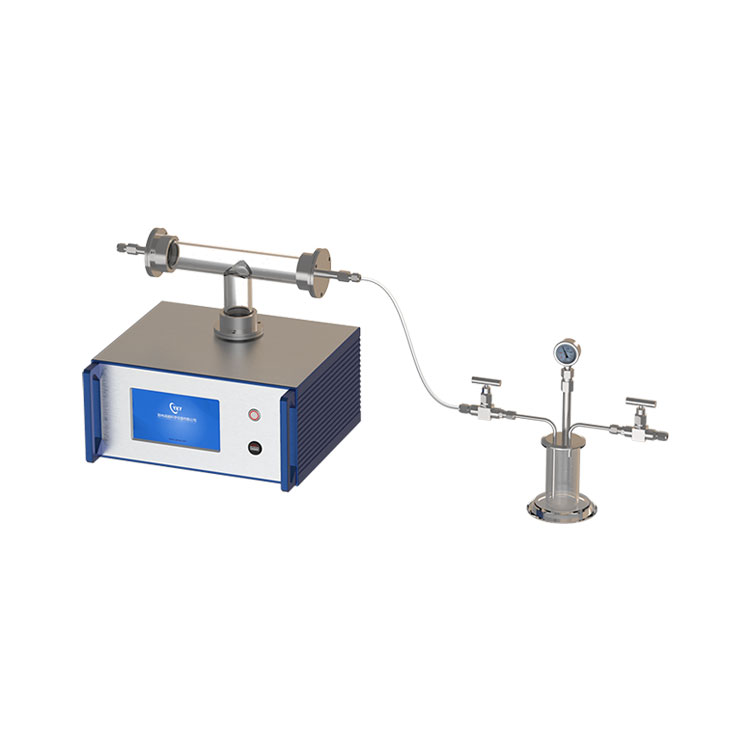

CY-USP-G-LD is a 2.4MHz ultrasonic atomization generator that can be used in conjunction with TN series furnace tubes to synthesize multi-purpose oxide nanomaterials.

Main Features


·2.4MHz ultrasonic frequency, the liquid atomization hardly generates heat.

·304 stainless steel 1.5 inch tee joint and 1/4 inch joint,

· Fluorine polymer coating for liquid containers and seals

·Microprocessor control: allows the user to program the operating parameters (atomization time and speed) and manage various applications to accurately atomize.

·The fluoropolymer optical sensor and fluoropolymer valve can maintain the liquid level at the correct height and prevent damage to the atomizing element. The device should be operated under dry conditions

·The stainless steel liquid condenser is connected in a straight line with the air bubble, which can prevent the ultrasonic condensate from flowing into the oven cavity.

·The components can be easily removed and cleaned by using quick clamps, and the gas supply can be easily connected to the device.
technical parameter
Input voltage

AC220V/50Hz

Ultrasonic frequency

2.4MHz

volume

1.5L

Tube size

Outer diameter 100mm, inner diameter 93mm, height 250mm

Power setting

Full output capacity: 0% to 100%, in increments of 5%

weight

25KG

Package dimensions

12*12*12 inches (length*width*height)

Guarantee

One-year warranty and lifetime support (consumable parts such as O-rings are not covered by the warranty)
