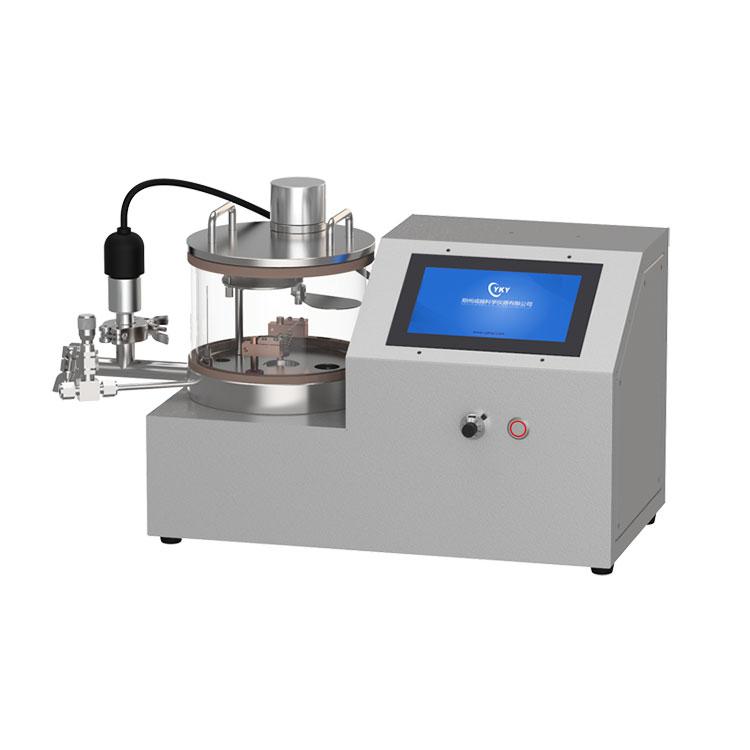

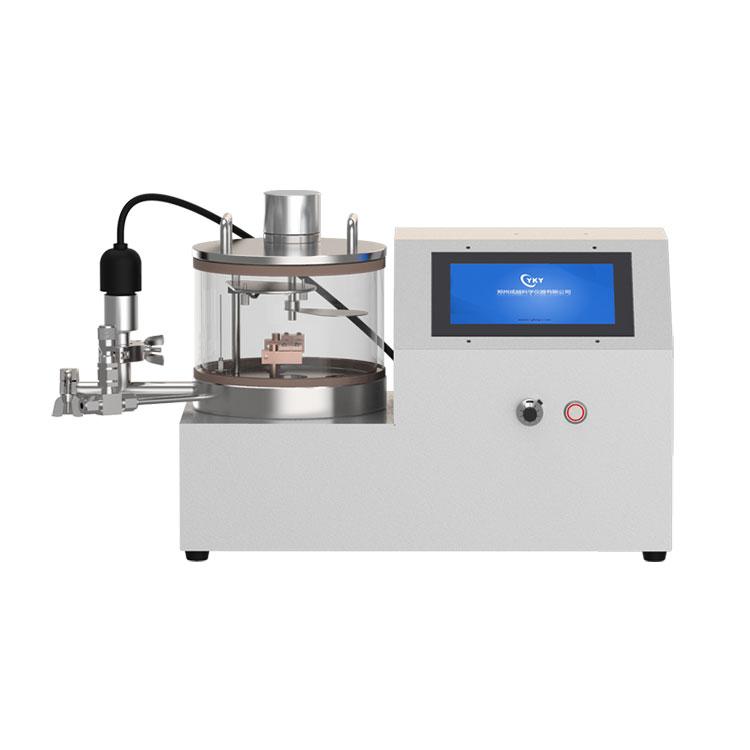

This small thermal evaporator can be used for vacuum evaporation deposition coating and the coating current can reach up to 100A. This type of small evaporation coating instrument has a wide range of applications and can prepare various metal thin films and some non-metal thin films, so it is widely used in electrodes and organic light emitting LED preparation. The instrument has a small size and a miniaturized design, which can effectively save laboratory space. It is specially designed for use in a glove box; it is simple to operate and has strong adaptability to different materials, making it very suitable for laboratory purchases.
Characteristics:
1. Quartz chamber, easy to clean and put in samples;
2. Tungsten wire basket or tungsten boat is the heating source, the highest temperature can reach 1700℃;
3. Inert gas can be introduced into the vacuum chamber to clean the chamber, or reactive gas can be introduced to perform reactive evaporation coating.
4. The air inlet is equipped with a needle valve to adjust the air flow.

Item

Detail

Supply voltage

AC220V,60Hz

Max power

1000W

Sample stage

Diameterφ60mm;

Quartz chamber

O.Dφ180mm x I.Dφ166mm x 100mm

Evaporation source

Tungsten basket/tungsten boat

Max temperature

1700℃

Thermocouple

B-type,working temperature 200℃~1500℃

Vacuum gauge

Resistance type vacuum gauge

Vacuum interface

KF16

Inlet interface

φ6.35mm Bite type fittings

Vacuum pump

No, the customer provides it

Dimensions

330x250x580mm
