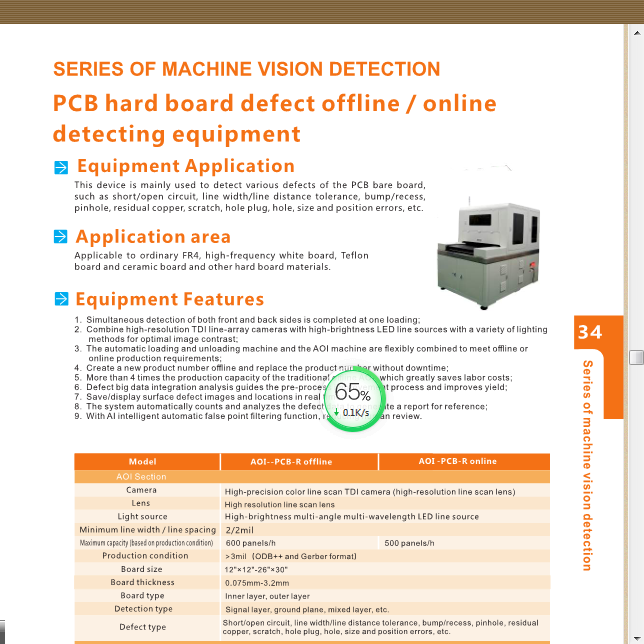

Equipment Application
This device is mostly used to detect various defects on the PCB inner layer and outer layer board ,such as
short/open circuit, line width/ line distance tolerance, bump/ recess , pinhole, residual copper , scratch, hole plugs, hole, size and position errors, etc.

Application Area
Applicable to ordinary FR4 , high-frequency white board ,Teflon board , ceramic board and other hard board materials.

Equipment Features
1.Simultaneous detection of both front and back sides is completed at one loading ;
2.Combine high-resolution TDI line-array cameras with high brightness LED line sources with a variety of lighting methods for optical image contrast ;
3.The automatic loading , unloading machine and the AOI machine are flexibly combined to meet offline or online production requirements;
4.Create a new product number offline and replace the product number without downtime;
5.More than 4 times the production capacity of the traditional offline AOI , which greatly saves labor costs ;
Model : AOI-PCB-R online
Min width/ line space : 2/2 mil
Max capacity ( based on production condition ) : 500 panels / h
Production condition : ODB++ and Gerber format
Board size : 12"×12"-26"×30"
Board thickness : 0.05mm-5.0mm
